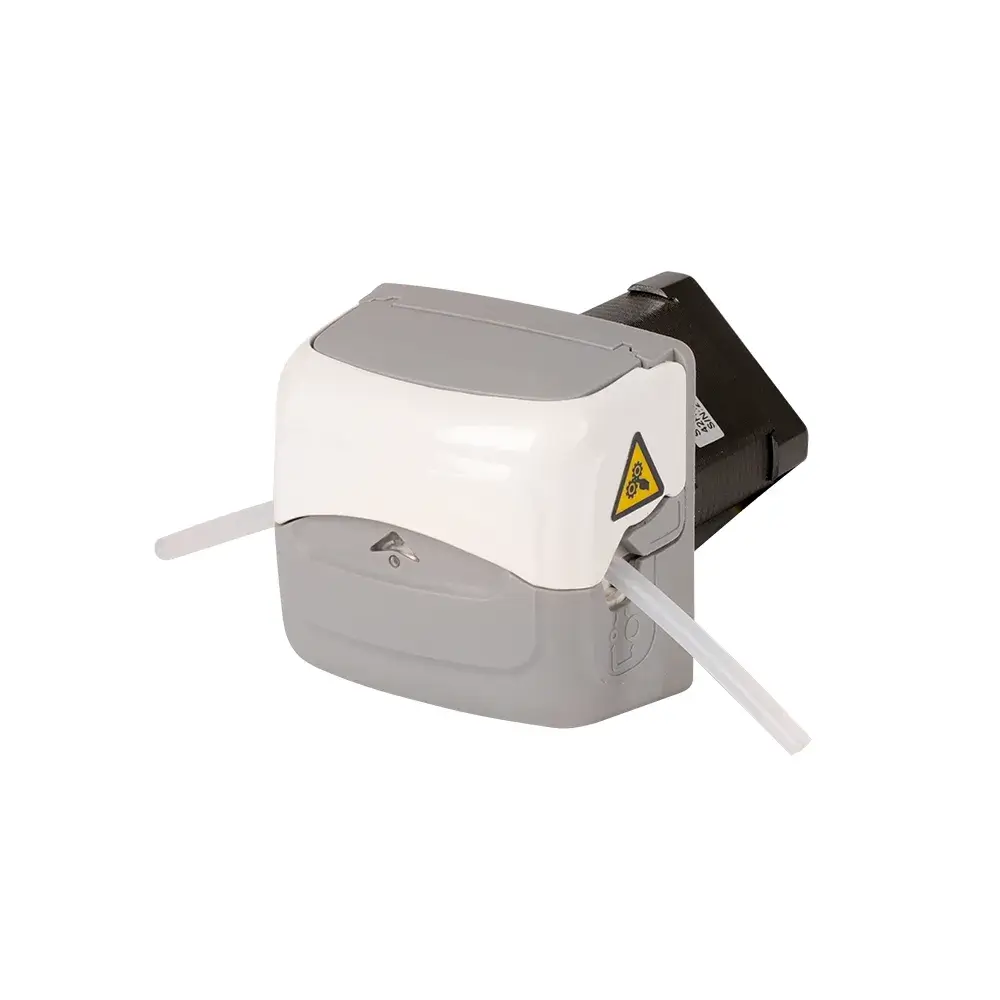

B400K0FT1505 Peristaltic Pump Head: Core Fluid Module for System Integration

1. Exceptional Transfer Stability: The patented four-roller structure significantly minimizes flow pulsation, providing a smooth fluid environment for sensitive processes like cell culture and reagent dispensing.

2. Easy Integration & Adaptation: Its compact mechanical design and standardized 42 stepper motor interface allow for quick embedding into equipment, significantly reducing overall R&D and assembly time.

3. Broad Media Compatibility: Compatible with various bio-compatible tubing types, safely handling media, buffers, cleaning solutions, and more, meeting diverse lab and production needs.

4. Long-Term Operational Reliability: Constructed with reinforced engineering plastics and 304 stainless steel components, ensuring dimensional stability and corrosion resistance for extended service life with low maintenance.

5. Flexible Output Performance: Offers both continuous and high-speed intermittent operating modes, with a maximum intermittent flow rate of 550 ml/min, adapting to various duties like washing and dispensing.

Q: What types of equipment is this pump head primarily designed to integrate with?
A: It is an ideal OEM fluidics module, widely used in fully automated chemiluminescence immunoanalyzers, nucleic acid extraction instruments, bioreactor sampling systems, surgical irrigation devices, and various laboratory automation instruments.

Q: Is it easy to install and replace the tubing?
A: Extremely convenient. Featuring an elastic gap and self-adaptive tube clamp design, users can complete quick tube loading or replacement within seconds without any tools, greatly enhancing operational efficiency.

Q: Does the drive control system need to be sourced separately?
A: Yes. This product is a purely mechanical pump head component supplied with a 42 stepper motor. Users need to independently select matching stepper motor drivers and control systems based on their equipment’s requirements to achieve desired flow rates and start/stop logic.

Q: Are its materials suitable for clean environments?
A: Yes. The pump head housing is made of reinforced nylon, the rollers are PET, and metal parts are 304 stainless steel. These materials offer smooth surfaces, chemical resistance, and low particle generation, meeting basic requirements for clean applications.

Q: How to ensure flow accuracy after integration?
A: Final flow accuracy depends on the pump head, tubing, driver, and system calibration. We recommend using high-quality tubing with tight dimensional tolerances, pairing the 42 stepper motor with a micro-stepping driver, and performing flow calibration under actual operating pressure for optimal results.
